简介：贝克休斯在2009年度的OTC大会上，两项新产品受到嘉奖。一个是TORXS™ 可扩展衬管悬挂器系统，另一个是多分支井系统。

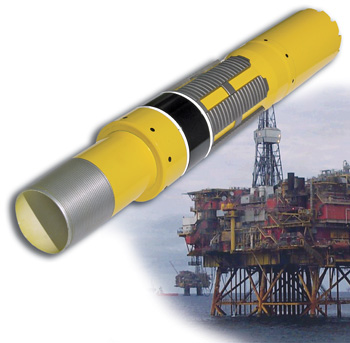

TORXS™ Expandable Liner Hanger System

Operators desire the ability to execute an activity within the planned time and budget, with minimum risk. Liner installations can challenge this desire when complex hole environments, equipment limitations, or undependable methods exist. Conventional liner hanger systems are well proven but become limited in functionality as hole conditions become more complex. Expandable liner hanger systems, albeit unique in concept with few exposed parts, are operationally primitive with inherent cementing risks. Baker Oil Tools recognized both the advantages and disadvantages of these two systems and developed multiple new technologies that exploit the benefits of each into a single integrated system called TORXS.

Using variable-diameter swage enables the TORXS running tool to expand the liner hanger before displacing cement. Expansion of the hanger component is easily controlled and does not reduce the system's annular flow area. Packer setting occurs after displacing cement and is not dependent on plug bump. The TORXS system is robust, has superior torsion limitations and uses balanced hydraulics so that the liner can be safely rotated and circulated down, without risk of premature activations. TORXS is proving to be one of the most practical options, with solutions for several downhole problems, in a single package.

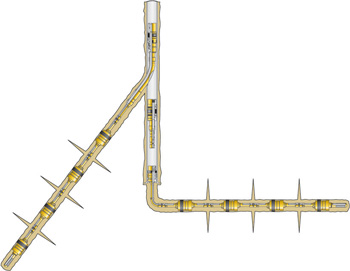

Frac-Hook™ Multilateral System

Producing gas in tight shale formations often requires major pumping investments. Traditionally, a driller didn't have many good choices when fracturing a tight gas well. One option was to simply pump frac fluid into the open hole and hope for the best, which resulted in frac fluid flowing mainly to the area of least resistance, reducing production along the rest of the wellbore.

The new Baker Oil Tools Frac-HookTM Multilateral System allows operators to accurately pinpoint fracture placements, provide greater access and control of laterals. Also, the separate components are time- and cost-saving products on their own; combined, they offer the most cost-efficient and accurate stimulation system available.

杨宝剑 是振威（全球）石油网的高级技术编辑，在石油技术资讯行业有八年的学识和经验。他源源不断地提供石油行业全球最新的技术创新、研发成果、现场应用情况等信息。如果你对该项新技术有任何的疑问，或者对“新技术新产品”未来的内容有任何问题或建议，请联系杨宝剑编辑 +86 10-58236512 Email：allenyo@zhenweiexpo.com 欢迎与行业互动！
